High quality RGB Waterproof Amplifier L45*W95*H50mm, DC5V, 12V, 18V, 24V RGB strip light amplifier

FOB Reference Price:Get Latest Price
US $1-6 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BRIGHT
Model Number:
BG-A004-AM
Type:
RGB Amplifier
Max. Load Power:
DC5V, 12V, 18V, 24V optional (order specify the required voltage)
Voltage:
220V
working temperature:
-20-60 ℃
power supply voltage:
DC5V, 12V, 18V, 24V optional
connection mode:
connection mode
output:
output
package size:
L45*W95*H50mm
net weight:
175g
gross weight:
210g
static power consumption:
<1W
Guarantee:
1 years
Supply Ability
Supply Ability:
20000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1pc/box, outer carton
Port
SHENZHEN
Lead Time :
3-7 normal delivery time

High quality  RGB Waterproof-Amplifier L45*W95*H50mm,DC5V, 12V, 18V, 24V  RGB strip light amplifier

Product Description



NAME: RGB Waterproof-Amplifier

Model No.BG-A004-AM



Summarization :RGB  waterproof Amplifier  adjust  to  all  the  voltage-controlled  LED  controller  of  our  company,it  has waterproof function,RGB could accept PWM(Pulse Width Module) , Each one RGB amplifier can be added, the connecting number of LED will up to more than twice,countless RGB amplifiers could be connected in theory.







Technical Parameters:



1. working temperature: -20-60 ℃

2. power supply voltage: DC5V, 12V, 18V, 24V optional (order specify the required voltage)

3.  output: 3 channels

4.  connection mode: common anode

5.  external dimensions: L95ΧW52ΧH30mm

6. package size: L145ΧW95ΧH50mm

7.  net weight: 175g

8.  gross weight: 210g

9.  static power consumption: <1W

10.  output current: <4A (each channel)

11.  output power: 5V: <60W, 12V: <144W, 24V: <288W





Interface Specifications:

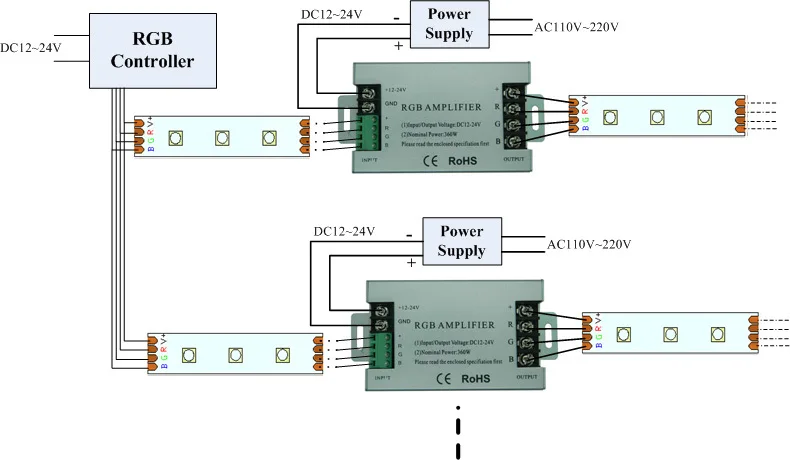

 Direction for Use:

According tthe screen prompts of RGB amplifier othpanel,connect thin/out signal wirborder,ensure short circuit can not occur between wire.then connect powewire for RGB amplifier. The specifidescription about the matching use of RGB Amplifier anLED,please refer to the following: typicaapplication.

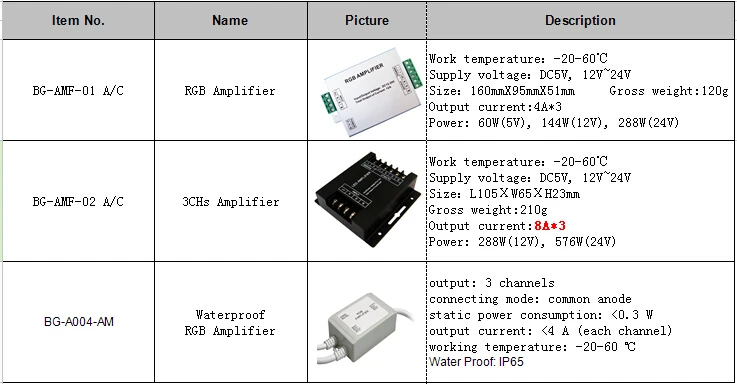

 More Type:





3CHs  Amplifier:



RGB   Amplifier:
