AAA Battery 2.4G RF RGBW Remote Controller,New Selling MINI RF Remote WIFI Led Strip Controller In Dimmers

FOB Reference Price:Get Latest Price
US $7-16 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
2.4g rf wireless control
Model Number:
BG-SZ100-TOUCH
Type:
Remote Control
Max. Load Power:
144W
Voltage:
110V
Input voltage:
12V-24VDC
Output current:
6A*3
Packing Size:
L127*W42*H33 (mm)
Output Current:
<6A (each Channel)
Working Temperature:
-20-60
Connecting mode:
common anode
Certificate:
CE ROHS
Gross Weight:
310g
Out put:
3 channels
Warranty:
1 year
Packaging & Delivery
Packaging Details
Standard Carton
Port
Shenzhen
Lead Time :
3-7days

AAA Battery 2.4G RF RGBW Remote Controller,New Selling MINI RF Remote WIFI Led Strip Controller In Dimmers



2.4G Controller Features

1.Supply Voltage:DC12~24V
2.Output:3 CMOS output
3.Output current: <4A/CH

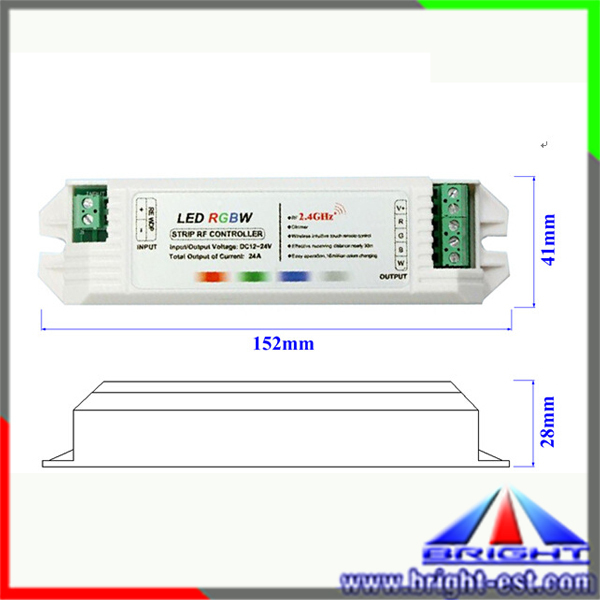

4.Receiver size:L85*W45*H23mm
5.Connection mode:common anode
6.Static power consumption:<1W
7.Output Power:12V:<144W, 24V:<288W
8.RF frequency:2.4G
Remarks:This remote are not support 4 group control version. The “W” button is the “RGB” mix color.



Direction for use

Operation method

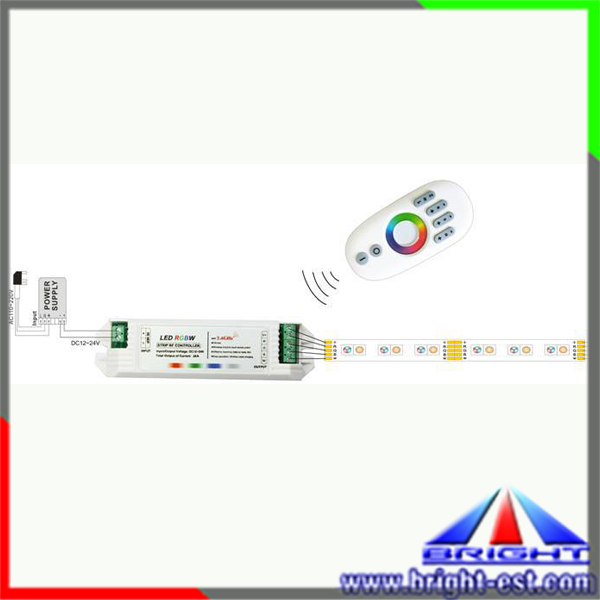

1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2.Only the power button is effective in the OFF station, press the power button for the first time then controller will enter to the last mode before turn of the controller last time (memory off function).

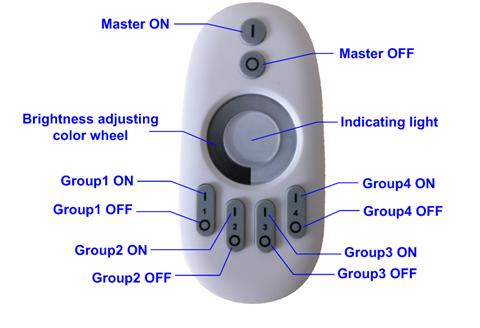

 3,Group operate instruction: if there is A and B two piece controller receiver, first to Power the receiver A, then press the Group 1 ON button for five times then the led will be flash, this means receiver A is controlled by Group 1. Second to power the receiver B,press the Group 2 ON button for five times, than the led will be flash, this means the Receiver B is controlled by Group 2. When press the Master ON button, Receiver A and B are turn on at the same time, press the Master OFF button, Receiver A and B are turn off at the same time , A and B receiver are changing the same when press the touch color wheel . IF you want to controller receiver A/B separately, please press the Group 1 ON button first, than you can adjust Receiver A brightness or turn ON/OFF receiver A . Meanwhile, Group 2/3/4 are the same.

Remarks: One remote can control 4 group of receiver at the same time ,each Group can be

including several receiver, such as 40 Receiver divided into four groups On average, the remote control can control 10 pieces receiver in each group , and achieve the synchronous effect .

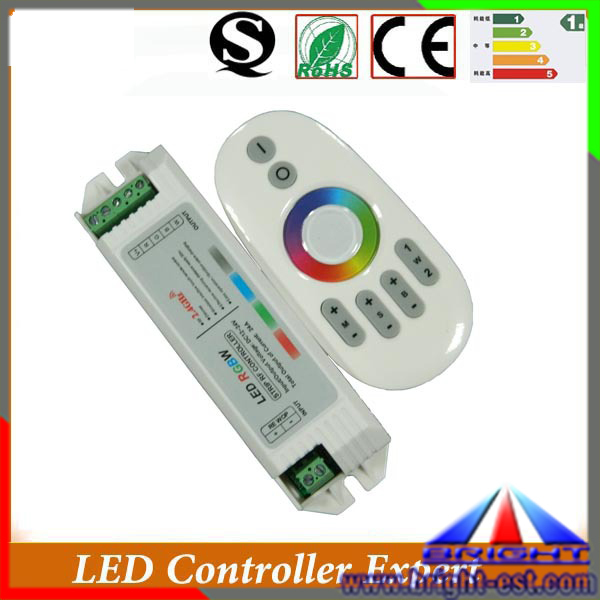

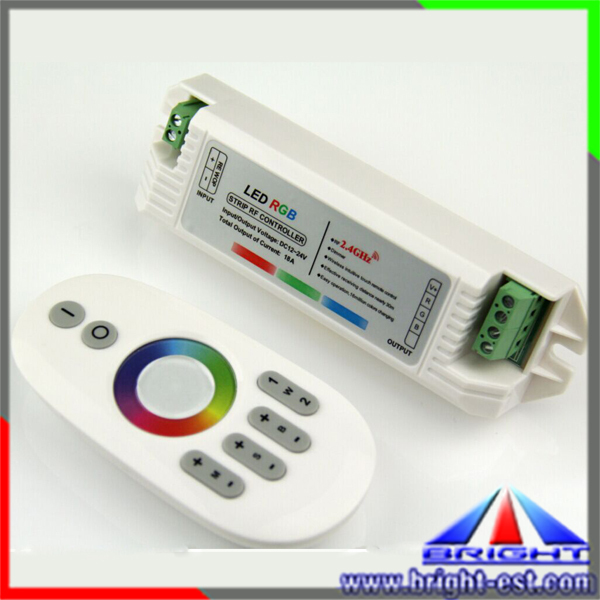

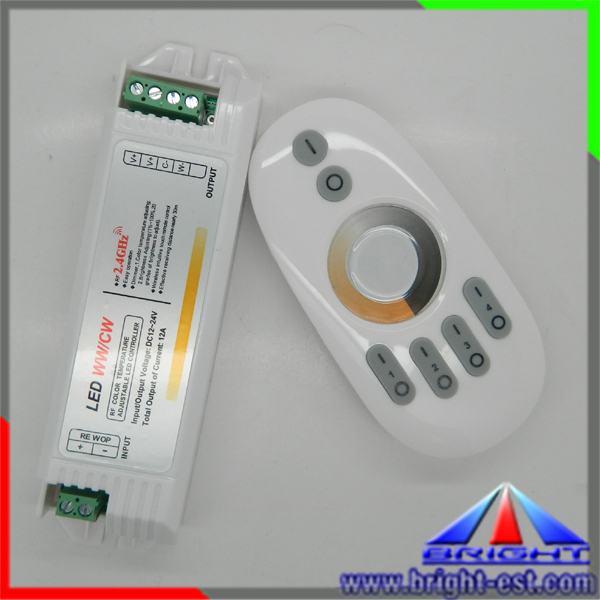

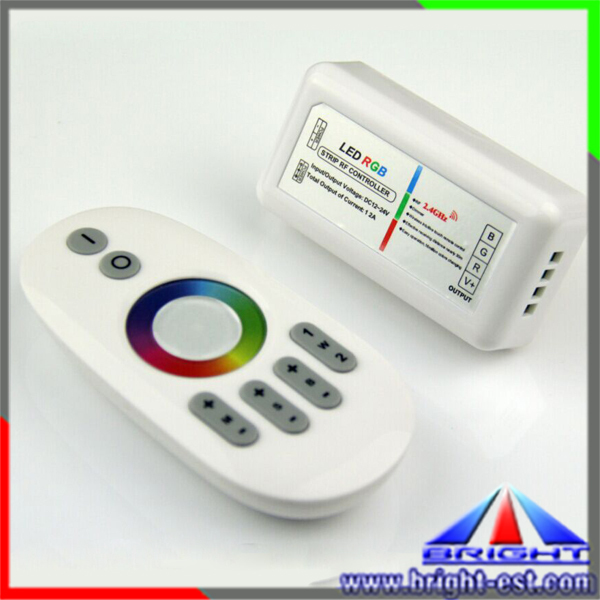

Product Pictures



If you have any questions,pls contacted me,i will reply you soon.-----hellen luo
